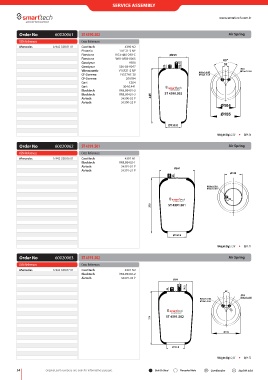

Page 54 - airsprings
P. 54
SERVICE ASSEMBLY
www.smarttech.com.tr
Order No 60020061 ST 4390.S02 Air Spring
OEM References Cross References
Mercedes A 942 328 01 01 Contitech 4390 N2
Phoenix 1 KF 21-2 NP
Firestone 1R7Z-440-290-C Ø235
Firestone W01-M58-0905 60°
Goodyear 9508 52
Goodyear 556-03-9047 25 50.5 Ø24
Vibracoustic V1KF21-2 NP M24x1.5 6G M16x1.5 6H
CF Gomma 1VSC285-30 M16x1.5 6H
CF Gomma 206784
Gart C304
Gart 304.0.441
Blacktech RML95401-2
Blacktech RML95401-3 ST 4390.S02
Airtech 34390-02 P 445
Airtech 34390-22 P
Ø104
Ø155
Ø130.8
Weight (Kg): 2,38 QIP: 54
Order No 60020062 ST 4391.S01 Air Spring
OEM References Cross References
Mercedes A 942 328 06 01 Contitech 4391 N1
Blacktech RML95402-1
Airtech 34391-01 P Ø240
Airtech 34391-21 P
Ø155
25
M24x1.5 6H
M16x1.5 6H
52
370 ST 4391.S01
Ø130.8
Weight (Kg): 2,18 QIP: 72
Order No 60020063 ST 4391.S02 Air Spring
OEM References Cross References
Mercedes A 942 328 07 01 Contitech 4391 N2
Blacktech RML95402-2
Airtech 34391-02 P
Ø240
50.5
25
52
Ø24
M24x1.5 6G M16x1.5 6H
M16x1.5 6H
370 ST 4391.S02 60°
Ø155
Ø130.8
Weight (Kg): 2,35 QIP: 72
54 Bolt Or Stud Threaded Hole Combination Stud Air Inlet
