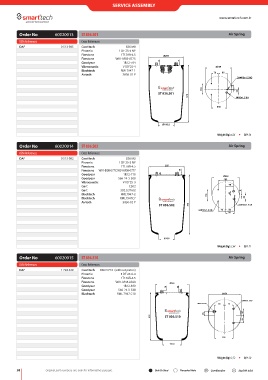

Page 38 - airsprings

SERVICE ASSEMBLY

www.smarttech.com.tr

Order No 60020013 ST 836.S01 Air Spring
OEM References Cross References
DAF 0 513 985 Contitech 836 MB
Phoenix 1 DF 25-4 NP
Firestone 1T17AR-4.5 Ø265
Firestone W01-M58-0775
Goodyear 1R12-764 22 15
Vibracoustic V1DF25-4 Ø259
Blacktech RML7947-1 70 85
Airtech 3836-01 P
3xM10x1.5 6G

5
110
ST 836.S01 33
375 M16x1.5 6H
150

Ø150.8

Weight (Kg): 4,26 QIP: 54

Order No 60020014 ST 836.S02 Air Spring
OEM References Cross References
DAF 0 513 982 Contitech 836 M2
Phoenix 1 DF 25-3 NP
Firestone 1T17AR-4.5 265
Firestone W01-D08-0777, W01-M58-0777 15
Goodyear 1R12-710 22 Ø259
Goodyear 566-24-3-500 155
Vibracoustic V1DF25-3
Gart C302 75
Gart 302.0.376/2 5
Blacktech RML7947-2 110 40
Blacktech RML7947C7 33
Airtech 3836-02 P
ST 836.S02 375 2xM16x1.5 6H
3xM10x1.5 6G 70 80
85

150.8
Weight (Kg): 3,64 QIP: 72
Order No 60020015 ST 836.S10 Air Spring

OEM References Cross References
DAF 1 794 420 Contitech 836 N P10 (without piston)
Phoenix 1 DF 23 A-4
Firestone 1T17AR-4.5
Firestone W01-M58-8368 Ø265
Goodyear 1R12-849 15 22
Goodyear 566-24-3-548
Blacktech RML 7947 C10 Ø258
2xM10x1.5 6G
M22x1.5 6H 80 70
55
33
375 ST 836.S10
55

150
150.8

Weight (Kg): 3,72 QIP: 30

38 Bolt Or Stud Threaded Hole Combination Stud Air Inlet
